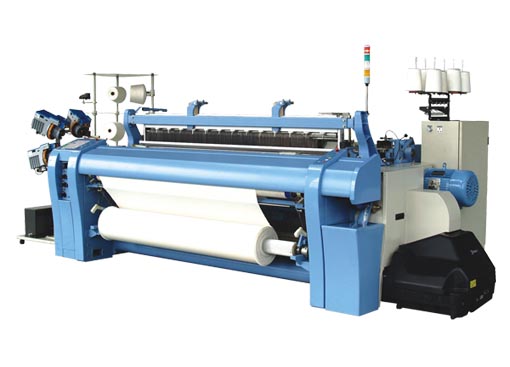

RW170 Air Jet Loom

Introduction of RW 170 Air Jet Loom:RW 170 Air Jet Loom is a kind of air jet weaving machine with advanced designed using computer streamline analysis to provide stable insertion of weft yarns and red...
CONTACT NOW
Features Related Products

Introduction of RW 170 Air Jet Loom:

RW 170 Air Jet Loom is a kind of air jet weaving machine with advanced designed using computer streamline analysis to provide stable insertion of weft yarns and reduced air consumption. This jet weaving machine can weave high quality fabric with lower cost, to realize the maximization of investment gains, to guarantee winning victory in the keen market competition market competition.

WBS weft brake system:

The WBS of the air jet weaving machine sharply reduces peak tension that occurs at the end of filling insertion in order to prevent filling breakage and looseness. The WBS of the air jet weaving machine precisely controls brake timing and brake stroke according to the yarn release timing detected by the sensor. This system on the air jet weaving machine is best for extra-wide weaving which invites higher peak tension. It is also helpful for yarns which may cause broken picks. Set values for the WBS on the jet weaving machine can be automatically entered from the I-Board. The pull-back function prevents tip troubles.

Parameters of RW 170 Air Jet Loom:

Reed space: 170
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple sley sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function
