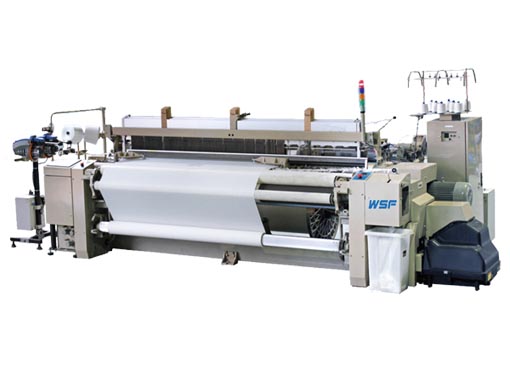

Customized Air Jet Loom

Introduction of Customized Air Jet Loom:We provide the air-jet loom custom services. We can design for their air jet machine according to clients’ requirements, meeting the needs of clients. We can p...
CONTACT NOW
Features Related Products

Introduction of Customized Air Jet Loom:

We provide the air-jet loom custom services. We can design for their air jet machine according to clients’ requirements, meeting the needs of clients. We can provide all kinds of high speed jet looms. As a supplier, client’s contents are our aim.
Our air jet machine has air control tuck-in device. For tuck selvage formation, fillings are tucked in the edge by the force of air instead of conventional tuck-in needle movement. Damage on the reed by a tuck-in needle is prevented. Wear and tear of the mechanical parts is eliminated.

Flexibility and wide applicability of Customized Air Jet Loom

A full range of standard equipment and a variety of options can weave fabrics that were previously mostly woven by rapier looms, including wide home furnishings fabric, stretch fabric, fabric of different yarn types and counts, airbags, seersucker and fabric with tuck-in selvages.

Easy operation &new Electronics of Customized Air Jet Loom

Relatively lower machine, upper temples are both good for the operator; a new internet-ready color function panel with enhanced communication capability and a new, faster CPU.

Parameters of Customized Air Jet Loom

Reed space: 150/170/190/210/230/250/280/340/360
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple slay sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function



  • RW280 Air Jet Loom
    Introduction of RW 280 Air Jet Loom:RW 280 Air Jet Loom has electronic let-off and stop-mark prevention system ensure high fabric quality. This fabric weaving loom has double back rollers. The double ... RW280 Air Jet Loom
  • RW250 Air Jet Loom
    Introduction of RW 250 Air Jet Loom:RW 250 Air Jet Loom has multiplicate shedding motion. This 250 air jet loom is a kind of advanced air jet machine with new permanent-magnet motor weft accumulator. ... RW250 Air Jet Loom
  • RW360 Air Jet Loom
    Introduction of RW 360 Air Jet Loom:RW 360 Air Jet Loom is a kind of advanced textile loom machine. This air jet textile machine has a total stop-mark prevention system. The powerful CPU controls vari... RW360 Air Jet Loom
  • RW190 Air Jet Loom
    Introduction of RW 190 Air Jet Loom:RW 190 Air Jet Loom is advanced designed using computer streamline analysis to provide stable insertion of weft yarns and reduced air consumption. This air jet loom... RW190 Air Jet Loom
  • RW170 Air Jet Loom
    Introduction of RW 170 Air Jet Loom:RW 170 Air Jet Loom is a kind of air jet weaving machine with advanced designed using computer streamline analysis to provide stable insertion of weft yarns and red... RW170 Air Jet Loom
  • WSF810 Air Jet Loom
    Introduction of WSF810 Air Jet Loom:Our Air Jet Loom machine is designed with the concept: provide the high performance air jet loom mechanism with economical price for our customer. This jet loom can... WSF810 Air Jet Loom
  • RW210 Air Jet Loom
    Introduction of RW 210 Air Jet Loom:RW 210 Air Jet Loom is a kind of air jet weaving with advanced designed using computer streamline analysis to provide stable insertion of weft yarns and reduced air... RW210 Air Jet Loom
  • RW230 Air Jet Loom
    Introduction of RW 230 Air Jet Loom:RW 230 air jet loom is a kind of advanced air jet weaving loom machine. This air jet weaving loom machine is equipped with new permanent-magnet motor weft accumulat... RW230 Air Jet Loom

More Detail Customized Air Jet Loom

Introduction of Customized Air Jet Loom:

We provide the air-jet loom custom services. We can design for their air jet machine according to clients’ requirements, meeting the needs of clients. We can provide all kinds of high speed jet looms. As a supplier, client’s contents are our aim.
Our air jet machine has air control tuck-in device. For tuck selvage formation, fillings are tucked in the edge by the force of air instead of conventional tuck-in needle movement. Damage on the reed by a tuck-in needle is prevented. Wear and tear of the mechanical parts is eliminated.

Flexibility and wide applicability of Customized Air Jet Loom

A full range of standard equipment and a variety of options can weave fabrics that were previously mostly woven by rapier looms, including wide home furnishings fabric, stretch fabric, fabric of different yarn types and counts, airbags, seersucker and fabric with tuck-in selvages.

Easy operation &new Electronics of Customized Air Jet Loom

Relatively lower machine, upper temples are both good for the operator; a new internet-ready color function panel with enhanced communication capability and a new, faster CPU.

Parameters of Customized Air Jet Loom

Reed space: 150/170/190/210/230/250/280/340/360
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple slay sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function
