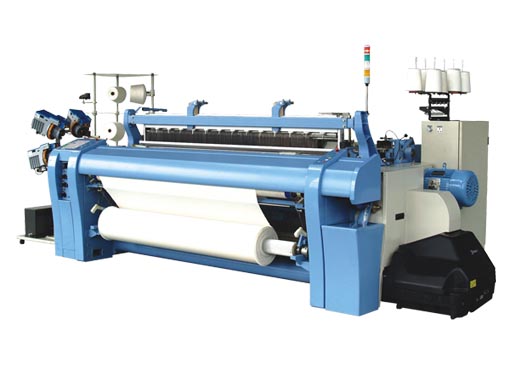

RW280 Air Jet Loom

Introduction of RW 280 Air Jet Loom:RW 280 Air Jet Loom has electronic let-off and stop-mark prevention system ensure high fabric quality. This fabric weaving loom has double back rollers. The double ...
CONTACT NOW
Features Related Products

Introduction of RW 280 Air Jet Loom:

RW 280 Air Jet Loom has electronic let-off and stop-mark prevention system ensure high fabric quality. This fabric weaving loom has double back rollers. The double back rollers of the 280 Air Jet Loom detects and maintain the correct warp tension regardless of the size of the beam diameter.

This fabric weaving loom has positive easing. The positive easing of the 280 Air Jet Loom is ideal for a wide range of materials, particularly heavy or densely woven fabric. The positive easing of the 280 Air Jet Loom also offers consistent synchronized movement during high-speed operation.
This 280 Air Jet Loom also has electronic take-up. The weft density settings can be entered from the function panel (single pick density type). This system of 280 Air Jet Loom can also change weft density during loom operation (multiple pick density type).

Also there is negative easing on the 280 Air Jet Loom. Negative easing is provided for weaving lightweight fabrics using filament yarn and glass fiber.

Parameters of RW 280 Air Jet Loom:

Reed space: 280
Weavable range: Spun: Ne 100 – Ne 2.5; Filament: 56dtex-1350dtex
Filling selection: 1-color, 2-color mixing; 2-color at-will; 4 colors; 6 colors
Filling insertion: Main and sub-nozzles combined system, auxiliary main nozzle; New solenoid value with built-in manifolds; Independent sub-nozzle timing control by color; AJC Auto Jet Controller: First pick control
Let-off: Electronic let-off
Take-up: Electronic Take-up
Beating: Crank type beating, multiple sley sword beating
Measuring & storage: Brushless DC motor weft accumulator
Filling supply stand: Floor mounted for 4 packages (2 colors), Floor mounted for 8 package (4 colors)
Selvage: Planetary gear motion
Waste filling remove: Catch cord type (3-roll type), catch cord type (Gear type)
Cutter: Mechanical cutter
Lubrication: Oil bath system for main driving parts, centralized lubrication (Manual grease)
Stop motion: Reactive weft feeler
Automation: Data setting, automatic control, monitoring, self-diagnosis function
