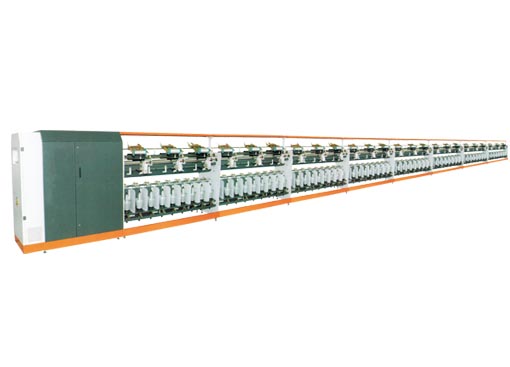

YF168 Multiple Strand Twisting Machine

Introduction of YF168 Multiple Strand Twisting Machine:Our YF168 multiple strand twisting machine is a kind of advanced thread twisting machine. This twisting machine can twist more the two yarns at t...
CONTACT NOW
Features Related Products

Introduction of YF168 Multiple Strand Twisting Machine:

Our YF168 multiple strand twisting machine is a kind of advanced thread twisting machine. This twisting machine can twist more the two yarns at the same time. a numerical electric control system is installed on the thread twisting machine. This system can control automatically. Optimization of electrical control systems and closed loop feedback control of spindle and unique winding yarn guide mechanism by PLC, all above can be set on the panel of the thread twisting machine and achieve real-time monitoring of spindle speed and twist the main process parameters.

Features of YF168 Multiple Strand Twisting Machine:

>> Digital electronic control system
>> Control automation.

1) Wide technological adaptability. Stepless adjust of angle of wind, forming length, short stroke length, long –short stroke frequency and so on. Easy alteration and satisfied to optimize different products.
2) 2~3 strands yarns will twist and merge at the same time.
3) Traverse servo motor transmission and nice winding shaping.
4) Various forming mode to satisfy different yarn shaping demands of clients.
5)Auto stopper as yarn broken.
6) The uniform distribution of spindle and the tension error of single yarn are small.

Technical Parameters of YF168 Multiple Strand Twisting Machine:

For raw materials: 100D~1000D Polyester, nylon wire, etc.
Solutions retreat cheese: 42 inner diameter of the outer diameter 38, length 350 ~ 270mm
The number of sections: ≤10 Festival
Tenser: Ball, capsule
Twist(T/M): 160~2400
Starting method: Delta slow start
Twist: S or Z
Operation form: Double-sided single, lead wires lead yarn
Up speed: ≤60m/min
Spindle Transmission: Long tangential belt drive
Rated power: 14.7KW
Loading amount: 2-5kg
Winding brass: There are side tube, length 230,290mm

Variations technical parameters of YF168 Multiple Strand Twisting Machine:

Spindle gauge: 180mm or 222mm
Each section spindles: Twisting spindle: 24, forming: 12 or Twisting spindle: 8, forming: 6
Dimension (10): L25000*B730*H1656 or L23380 * B730 * H1656
Spindle speed: 5000-12000rpm
